CNC Plasma Table 03
6,000mm × 2,500mm bed
Fabrication at
Production Scale
Six CNC plasma tables running 24 hours deliver tillage disc profiles, toolbar plates, and chassis blanks to tolerance specifications your tooling engineers set — not ours. Every cut is logged to ISO 9001 lot records before it leaves the table.
| Process | Tolerance | Capacity |
|---|---|---|
| CNC Plasma Cutting | ±0.003″ | 6 tables × 24hr |
| Robotic MIG Welding | ±0.010″ | 28 cells × 3 shift |
| Press Brake Forming | ±0.5° | 4 press × 500t |
| Tube Laser Cutting | ±0.004″ | 2 cells × 16hr |
Nesting Efficiency
94.2%
material utilization
Scrap Rate
<2.1%
vs. industry avg 6%
Color Matched.
Cure Certified.
Two powder-coat lines — one dedicated to OEM color programs, one to custom and prototype runs. Every batch is cured to manufacturer spec: 200°C for 20 minutes, adhesion tested per ASTM D3359 before shipment. We hold 180+ approved colors in stock.
OEM Color Programs — In Stock
John Deere Green
RAL 6010 / JD Spec
CLAAS Red
CLAAS 40000
Safety Amber
RAL 2000
Matte Mill Black
RAL 9017
Machinery Silver
RAL 9006
Implement Gray
RAL 7035
Oven Temp
200°C
cure cycle
Film Build
80–120μ
DFT spec
Salt Spray
1,000hr
ASTM B117

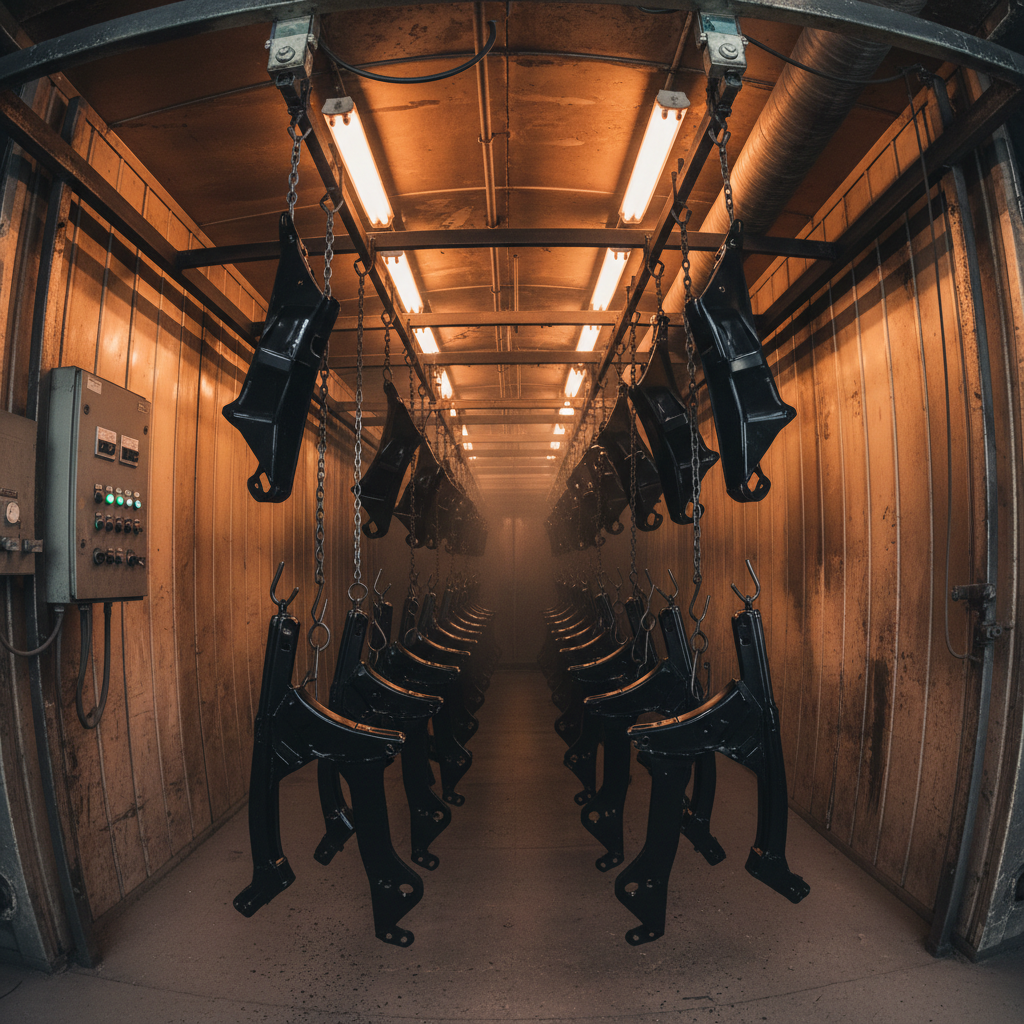

Powder-Coat Line 01
OEM Dedicated — 6m oven
Final QC Bay 02
CMM + Visual Inspection
99.1%
First-Pass Yield
100%
CMM Inspected
0.3%
RMA Rate
Evidence, Not
Assurances.
Every sub-assembly carries a lot traveler from first cut to final torque. CMM reports, weld inspection records, and coating batch certificates ship with the part — not on request.
ISO 9001:2015
Since 2014Quality Management System
AWS D1.1
Since 2011Structural Welding — Steel
OSHA VPP Star
Since 2018Voluntary Protection Program
ASTM B117
Since 2016Salt Spray Corrosion Testing
ASTM D3359
Since 2016Adhesion by Tape Test
IATF 16949
Since 2020Automotive Quality (OEM)
NDA to First
Production Run.
Structured, not speculative. Every engagement follows the same five-phase process — predictable timelines, defined deliverables, no guesswork.
NDA & Intake
Day 1–3Mutual NDA executed. Engineering intake form captures volume, material, finish spec, and target cost. Drawing review scheduled.
Ready to scope your engagement?
Most OEM partnerships reach first article within 7 weeks of signed NDA.
